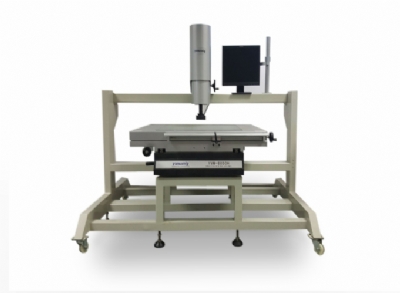

YVM-H Gantry Frame Instrument
  1. [ 日期:2017-03-24 查看次数:3410 ]
查看  详情

Instrument use:

The apparatus is applied to two coordinate measurement for purposes of all application areas.Especially in the PCB board,large LCD,large plastic shell,mold and other industries are widely used in large.


Features:

Powerful YR-YCSPC measurement software,can realize all the two-dimensional measurement funtion,also has the film map,product profile scanning,professional SPC statistical,manual CNC,macro measurement funtions.The Z axis also can realize accurate measurement and flatness measurement.


Specitications:


Instrument model YVM-4030H YVM-5040H YVM-6050H YVM-8060H
X.Y Axis Travel 400X300mm 500X400mm 600X500mm 800X600mm
Z Axis Travel 200mm
X.Y.Z Axis Resoulution 0.0005mm
Zoom lens Stadard 0.7-4.5X Zoom Lens
Magnification 24-156X(12-312X is available)
CCD 430.000 Pixels high definition CCD(SONY chip)
Measuring Accuracy X.Y  Axis:(3+L/100)μm
Measuring software YR-YCSPC
Instrument Base Longmen Quartet pipe pack
Instrument base 000-grade stable granite base
IIIumination Surface and contour illumination both use LED shadowless lamp
Overall dimenstions 900*500*1500mm 1100*600*1500mm 1300*700*1500mm 1800*800*1500mm
Instrument weight 350KG 450KG 600KG 900KG
Optional accessories 0.5X, 2X lens (can increase or decrease the magnification)
